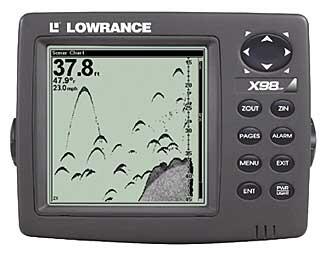

A serious new 50/200 kHz dual-frequency sonar powerhouse
for the serious coastal or Great Lakes angler!
Unique Standard Features:
True 500 watts RMS transmit power (4,000 watts
peak-to-peak)
Patented high-speed, low-profile, transom-mount, 50/200
kHz Skimmer® dual-frequency transducer for excellent depth capability to
2,500 feet* (762 m) and operates at boat speeds up to 70 mph (61 kts)
Built-in temp sensor in the transducer; unit accurately
displays water surface temperature
Includes SP-X transom-mount sensor for precise trolling
speed/distance log readings
Display/Sounder Features:
Exceptional 5" diagonal (12.7 cm), 320 x 320 pixel,
high-contrast Film SuperTwist LCD display
16-level gray scale definition and 102,400 total pixel
resolution for remarkable target detail and separation, even in direct
sunlight
Brilliant fluorescent cold cathode backlit screen and
keypad for easy readability at night and in low light conditions
Simplified keypad with Menu and Pages keys for easy
on-screen features selection
FasTrack™ full-screen flasher mode with GRAYLINE®
displays instantaneous sonar returns, plus gives the relative signal
strength of each target
When displaying actual sonar returns, FishReveal™
feature shows fish targets hidden by surface clutter, thermoclines, weed
beds and other cover in 16 levels of gray scale
HyperScroll™ feature locates and displays fish targets at
higher boat speeds
Patented GRAYLINE® separates fish and important
structure, on or near the bottom, from the actual bottom, and defines bottom
composition/hardness
Hands-free operation ease with Advanced Signal Processing
(ASP™) that automatically adjusts all crucial sonar settings for the best
possible picture in nearly all fishing situations
Selective on/off Advanced Fish I.D.™ feature shows
underwater targets in different sizes of fish symbols based on the relative
signal strengths of the return echoes
Selective on/off FishTrack™ feature displays target depth
readings above each fish symbol as a guide for quick and precise lure
presentations
Programmable display feature lets you combine a panel of
your favorite sonar data readings with your sonar graph in one easy-to-read
display
Advanced new receiver design offers enhanced sensitivity
and target detail, as well as greater resistance to electrical interference
Continuous digital depth and depth scale readouts;
user-selectable upper and lower depth range limits
Multi-range split-screen zoom and automatic bottom
tracking with high-speed display updates during depth range changes for
uninterrupted viewing
Instant zoom display ranges and zoom-bottom-tracking with
easy zoom-in/out control
Selective On/off Shallow, Deep, Zone, and Fish alarms
Built-in back-up memory preserves sonar settings for years
Livewell and baitwell temp displays with purchase of
optional sensor
High-impact cover protects screen and keypad when not in
use
Completely sealed and waterproof for use even in harsh
saltwater environments
Full one-year warranty
