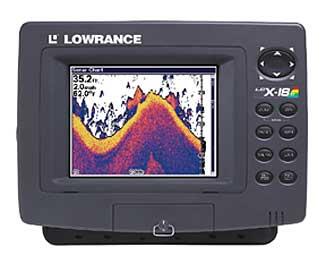

Lowrance LCX-18C FishFinder

Dynamic Display:
High-brightness 6" diagonal (15.2 cm), 320 x 240 pixel, 256-color, 114 VGA liquid crystal TFT display - 76,800 total pixel resolution - for sunlight viewable, super-sharp detail and target separation

Multiple color sonar chart modes

Brilliant fluorescent cold cathode backlit screen and keypad for easy readability at night and in low-light conditions

Menu and Pages keys for easy on-screen features selection

Multiple full-screen and split-screen sonar, navigation, and/or data display combinations

Innovative Recording:
Digitally record/play sonar graphs and GPS trip details, plus display custom electronic charts using optional, rewritable, compact Multi-Media Cards (MMC) or Secure Digital (SD) memory cards¹. Waterproof drawer accepts up to two MMC or SD cards up to 128MB each

• 200 kHz with 3,000 watts peak-to-peak power (375 RMS) for depths to 1,000 feet² (305 m), and produces a wider, more effective fish identification area of up to 60 degrees when using high sensitivity settings.
• 50/200 kHz dual-frequency with 8,000 watts peak-to-peak (1 kW RMS) @ 50 kHz for depths to 3,000 feet (915 m) and beyond², and 4,000 watts peak-to-peak (500 RMS) @200 kHz

FlashGraf™ feature combines a scrolling sonar target graph with a digital LCD flasher with COLORLINE™

LCX-18c also available as head unit only with thru-hull, shoot-thru-hull, and trolling motor transducer options for purchase

Adjustable ping speed feature automatically engages new HyperScroll™ feature for locating and displaying fish targets at higher boat speeds

Unique COLORLINE™ separates fish and important structure, on or near the bottom, from the actual bottom, and defines bottom composition/hardness

Hands-free operation ease with Advanced Signal Processing (ASP™) that automatically adjusts all crucial sonar settings for the best possible picture in nearly all fishing situations

Selective on/off Advanced Fish I.D.™ and FishTrack™ features show underwater targets in different sizes of fish symbols and display target depth readings above each fish symbol

FasTrack™ feature displays instantaneous flasher-style sonar returns and signal strength in a vertical bar

Programmable display feature lets you combine a panel of your favorite sonar data readings with your sonar graph in one easy-to-read display

Multi-range split-screen zoom and automatic bottom tracking with high-speed display updates during depth range changes for uninterrupted viewing

Instant zoom display ranges and zoom-bottom-tracking with easy zoom-in/out control

Selective on/off Shallow, Deep, Zone, and Fish alarms

Mapping Features:
LCX-18c combination models include the GPS Mapping Accessories Pack option to activate precision satellite navigation and to create custom electronic charts. Pack features LGC-12W receiver/antenna module, MapCreate™ CD custom mapping software³, 16MB MMC card, and MMC/SD card reader with USB connector (parallel port connector optional)

All-new, built-in Lowrance custom background map with enhanced detail to include over 60,000 critical nav aids and 10,000 wrecks and obstructions in U.S. coastal and Great Lakes waters. Also includes new land-based detail such as metro areas, select major streets/highways and interstate exit services for the continental U.S. and Hawaii

MapCreate™ CD software lets you create unlimited, custom, detailed maps on MMC or SD memory cards for navigational display, and features unique, searchable database⁴ of over 700,000 Points-of-Interest to easily find/identify marinas, restaurants, airports, emergency services, and more

Compatible with optional Navionics® CLASSIC and HotMaps™ electronic charts on MMC cards for select domestic and international areas, featuring depth contour lines and other helpful nav aids

Key GPS+WAAS Features:
12-parallel channel GPS reception with fast satellite lock-ons, precise tracking, and position updates every second

Selectable on/off WAAS reception for enhanced position accuracy to 3 m (under 10 ft) at select locations

High-speed screen updates

Mega-memory saves up to 1,000 waypoints, 1,000 event markers, and 100 routes (up to 100 waypoints per route)

10 savable plot trails with up to 10,000 points per trail

42 graphic icons to mark your favorite spots

37 map ranges - from .05 to 4,000 miles - with easy zoom-in/out control

Selective on/off GPS alarms: Off Course, Arrival, and Anchor

DGPS compatible; interfaces NMEA 0183

Comfort Features:
Internal back-up memory keeps stored sonar settings and GPS data safe and accessible for years

Man Overboard feature precisely marks MOB location with special icon, and displays return distance, bearing, track, speed, and estimated time enroute

External speaker output for remote monitoring of sounder and GPS alarms

High-impact cover protects screen and keypad when not in use

Completely sealed and waterproof, even for use in harsh saltwater environments

Full one-year warranty

Dimensions:
Display - Diagonal: 6"/15.2 cm
Case (with bracket) - Height: 7.3/18.5 cm  Width: 9.6"/24.4 cm  Depth: 3.7"/9.4 cm
