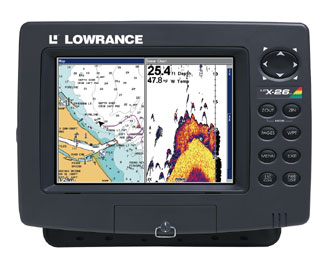

Lowrance LCX-26C HD GPS
LCX-26C HD

The same great professional features as the large-screen, color LCX-25C sonar/GPS+WAAS, but with the addition of a 20GB hard drive preloaded with tons of mapping and electronic charts. You can even record/playback sonar graphs and GPS details to the hard drive, or to the MMC/SD memory card slots. Also NMEA 2000® compatible for networking.
Display <<
  • Large 7" (17.8 cm) diagonal 256-color, VGA liquid crystal TFT display
  • Programmable color palette
  • Incredible 480V x 640H resolution
  • Advanced cold cathode screen and keypad backlighting
  • Multiple full- and split-screen sonar/GPS options
  • 6 sonar display color choices


    • Sonar/Sounder <<
  • Choice of dual-frequency (50/200 kHz) or single-frequency (200 kHz) Skimmer® transducer with built-in temp sensor
  • 8,000 W peak-to-peak (1,000 W RMS) power
  • Depth range to 3,000 feet* (915 m) at 50kHz
  • Temp readings from built-in sensor
  • Speed/Distance readings with optional sensor
  • FlashGraf™ LCD flasher+sonar graph with COLORLINE™
  • Adjustable ping speed automatically engages HyperScroll™ for locating fish targets at higher boat speeds
  • FasTrack™ vertical flasher bar
  • Standard sonar features - Advanced Signal Processing (ASP™), COLORLINE™, Advanced Fish Symbol I.D.™, FishTrack™, multi-zoom options, sonar alarms, backup memory, and more


    • GPS/Mapping <<
  • 20GB hard drive preloaded with tons of electronic charts, including:

    • - U.S. coastal areas, including Hawaii & Alaska, plus Great Lakes
    - Over 2,100 U.S. inland bodies of water
    - Topographical USA land-based mapping with street-level detail
    - Over 2 million POIs and an exclusive hunting database
  • Precision 12-parallel channel GPS+WAAS receiver
  • 1,000 waypoints/1,000 event markers/100 routes/100 waypoints per route
  • 100 savable plot trails/10,000 points per trail
  • 37 map zoom ranges, 0.05–4,000 miles
  • Two waterproof MMC/SD memory card slots for mapping, recording, and upgrading


    • Recording <<
  • Advanced digital recording/playback of sonar graph and GPS details…plus custom map uploading…with industry-standard memory cards (MMC/SD)
  • Additional capability to record/playback sonar graph and GPS details using the built-in hard drive


    • Components <<
  • NMEA 2000® compatible for networking
  • Audio output for remote speakers
  • High-impact screen cover
  • Sealed and waterproof
  • Full one-year warranty


    • Pack # Lowrance LCX-26C HD GPS - Select your package and add any accessories you want.
    200 kHz
    GPS Combo
    		LCX-26C HD This package is shipped with the Lowrance LCX-26C HD, GPS module, 200 kHz temp/depth transducer (8000 watts peak to peak), and the package accessories listed below just as you purchase it in stores.

    *MAP Our Price too low to advertise.
    50/200 kHz
    GPS Combo
    		LCX-26C HD This package is shipped with the Lowrance LCX-26C HD, GPS module, 50/200 kHz temp/depth transducer (8000 watts peak to peak), and the package accessories listed below just as you purchase it in stores.

    *MAP Our Price too low to advertise.
    Order via ground today and get a free upgrade to FedEx Express Saver 2-3 day service nation wide.
    Everything we sell is purchased directly from the manufacture.


    Package Accessories included with the LCX-26C HD

    Lowrance LCX-26C HD
    GPS Module with WAAS
    Gimbal Mounting Bracket
    Wire Harness
    One Year Factory Warranty
    Owners Manual
    MSRP: $1999.00
