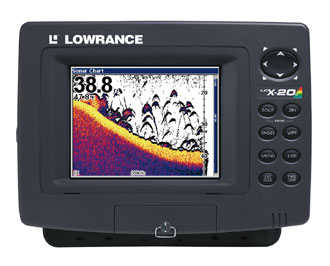

Lowrance LCX-20 Color GPS



A remarkable display at a remarkable price. This color sonar/GPS+WAAS is an outstanding performer and has all the professional features. The LCX-20C includes a 6" diagonal liquid crystal TFT display with a 240V x 320H resolution. Available in dual- and single-frequency options, and with or without a GPS+WAAS antenna. NMEA 2000® compatible for networking.

 LCX-20 Color

Display <<

Large 6" (15.2 cm) diagonal 256-color, VGA liquid crystal TFT display
Programmable color palette
Incredible 240V x 320H resolution - 76,800 pixels total
Advanced cold cathode screen and keypad backlighting
Multiple full- and split-screen sonar/GPS options
6 background color choices

Sonar/Sounder <<

Choice of dual-frequency (50/200 kHz) or single-frequency (200 kHz) Skimmer® transducer with built-in temp sensor 8,000 W peak-to-peak (1,000 W RMS) power
Depth range to 3,000 feet* (915 m) and beyond
FlashGraf™ LCD flasher+sonar graph with COLORLINE™
Adjustable ping speed automatically engages HyperScroll™ for locating fish targets at higher boat speeds
FasTrack™ vertical flasher bar
Standard sonar features - Advanced Signal Processing (ASP™), COLORLINE™, Advanced Fish Symbol I.D.™, FishTrack™, multi-zoom options, sonar alarms, backup memory, and more

GPS/Mapping <<

Precision 12-parallel channel GPS+WAAS receiver
1,000 waypoints/1,000 event markers/100 routes/100 waypoints per route
100 savable plot trails/10,000 points per trail
37 map zoom ranges, 0.05–4,000 miles
Two waterproof MMC/SD memory card slots for mapping, recording, and upgrading
Built-in enhanced background map of the continental U.S, and Hawaii
Compatible with optional MapCreate™ USA Topo custom mapping software
Compatible with optional plug-&-play Lowrance FreedomMaps™, Fishing Hot Spots® Elite, LakeMaster® Pro Maps, NauticPath™ USA, and Navionics® electronic charts

Recording <<

Advanced digital recording/playback of sonar graph and GPS details…plus custom map uploading…with reusable Multi-Media Cards

Components <<

NMEA 2000® compatible for networking
Audio output
High-impact screen cover
Sealed and waterproof
Full one-year warranty


Pack # Lowrance LCX-20 Color GPS - Select your package and add any accessories you want.
LCX-20C Combo 50/200
LCX-20 Color This package is shipped with the Lowrance LCX-20 Color, GPS module, 50/200 kHz temp/depth transducer (8000 watts peak to peak), Speed Sensor, LGC -2000 GPS module and the package accessories listed below just as you purchase it in stores.

*MAP Our Price too low to advertise.
Order via ground today and get a free upgrade to FedEx Express Saver 2-3 day service nation wide.
Everything we sell is purchased directly from the manufacture.


Package Accessories included with the LCX-20 Color

Lowrance LCX-20 Color
GPS Module with WAAS
Gimbal Mounting Bracket
Wire Harness
One Year Factory Warranty
Owners Manual
MSRP: $749.00
