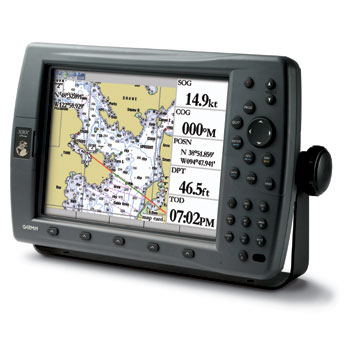

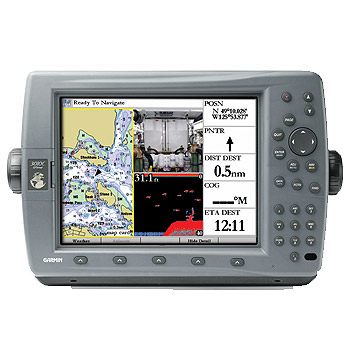

GPSMAP 3010

The GPSMAP 3010C and the GPSMAP 3006C launch Garmin into the world of Marine networking, with plug-and-play systems that put GPS, weather, sonar, radar, and other important data at boaters’ fingertips.

Both units are waterproof and feature a sunlight readable, 256-color, 640 x 480-pixel VGA display. The screen size for the GPSMAP 3010C is 10.4" diagonal. These multifunction displays (MFDs) are powered by a high-speed processor and graphics controller for fast redraw of charts and weather graphics. They communicate with the Garmin Marine Network through a 100-megabit Garmin-proprietary ethernet-based network. The entire system is waterproof and completely plug-and-play—the MFDs automatically detect any and all peripherals once they’re connected. Boaters can connect a GPS antenna and one remote sensor directly to the MFD. Or, with the addition of the GMS™ 10 Network Port Expander, users can connect multiple MFDs and sensors to the same network. Each networked MFD can be configured independently.

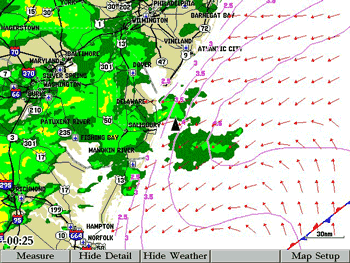

A unique feature to the Garmin Marine Network is the addition of the GDL™ 30 weather data receiver. Through a partnership with XM WX Satellite Weather, mariners can—for the first time—access real-time graphical weather data for the United States directly on the GPSMAP 3010C or 3006C—without the need for a separate PC interface. For those wanting more than 120 channels of XM Satellite Radio along with weather data, Garmin also offers the GDL 30A—which provides a unique audio-channel interface on the 3010C and 3006C that allows for connection to an on-board stereo.

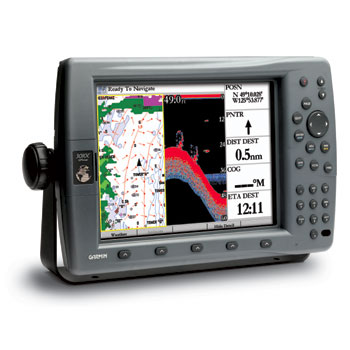

GPSMAP 3000 series products receive sonar data through the GSD 20, a proprietary "black box" sounder which offers 4,000 watts of peak-to-peak power (500 watts RMS) in a dual-frequency transducer. The Garmin Marine Network will be compatible with Garmin's new marine radar that is expected for the 2005 marine season. More information on the radar should be available in late 2004.

The Garmin Marine Network also offers a unique network upgrade system. The user simply prompts the MFD to read the current software version of all components within the network, and writes them onto a Garmin data card. Then the user uploads this data via a PC to the Garmin website, where the newest software versions are downloaded to the data card. The entire system is automatically updated once the card is re-inserted into the MFD.

Blue Charts are located here: CHARTS

Features

WAAS-enabled, 12 parallel channel GPS sensor with 30 ft. cable length
High-speed RISC processor and graphics controller for fast screen redraw
Use individually or connect and control multiple displays and sensors with built-in high-speed network
View weather overlays with optional GDL 30/30A remote XM marine weather/audio satellite receiver
Add sonar with optional GSD 20 remote sounder
13.1" W x 8.8" H x 3.25" D unit dimensions
Dual card slots; accepts data cards programmed with Garmin’s BlueChart® cartography
10.4"-diagonal, color TFT, full VGA, sunlight-readable display
Weighs approximately 5.0 lbs.
Backlit display and keypad
Permanent user data storage; no memory battery required
Two composite video inputs for on-board cameras; 1 VGA PC monitor video output
Three data ports allow for NMEA 0183 and proprietary Garmin
Navigation voice prompts (future software update required) with optional speaker
Remote operation using optional Garmin infrared remote control
Water resistant; meets IEC 60529 IPX7 standards
Built-in worldwide basemap showing cities, interstates, coastline detail and U.S. tide stations
Compatible with Garmin’s BlueChart™ marine. cartography and most MapSource products, including Fishing Hot Spots and MetroGuide®
4000 user waypoints with name and graphic symbol; 50 reversible routes with 300 waypoints/route
10,000 point automatic track log; 15 saved tracks let you retrace your path in both directions; 700 points/saved track
Position formats include Lat/Lon, UTM, Loran TDs, Maidenhead, MGRS; and user grid
Audible alarms for anchor drag, arrival, off-course, shallow water, deep water, proximity waypoint, clock, and battery
Large-numbers option for easy viewing
Course and speed filtering
Built-in celestial tables for sun and moon calculations
Multiple languages (future software update required)

PN #	GPSMAP 3010 Packages - Select your package and add any accessories you want.
010-00223-00	GPSMAP 3010 COLOR This package is shipped with the GPSMAP 3010 with a color display and all accessories listed below.	Retail ~~$2857.13~~ *MAP Our Price too low to advertise.
*MAP - Factory Minimun Advertised Price. We sell below the MAP level.
Order via ground today and get a free upgrade to FedEx Express Saver 2-3 day service nation wide.
Everything we sell is purchased directly from the manufacture.

Accessories Included with GPSMAP 3010 Packages One Year Factory warranty GPS 17N external remote sensor (antenna) A/V Cable Power/data cable Bail mount Template for flush mounting Protective front cover Owner’s manual Quick reference guide

Blue Charts are located here: CHARTS

Turn your GPSMAP 3010 into a dual purpose GPS/Fishfinder with the GSD 20 (Black Box).

Just click here: GSD 20
